36 CWC built Western Flyer resurrection project

Discussion in 'Project Rides' started by mrg, May 16, 2017.

  1. #1 Posted May 16, 2017
    mrg
    mrg

    I live for the CABE

    Joined:
    Aug 9, 2010
    Messages:
    1,736
    Likes Received:
    3,407
    Location:
    socal

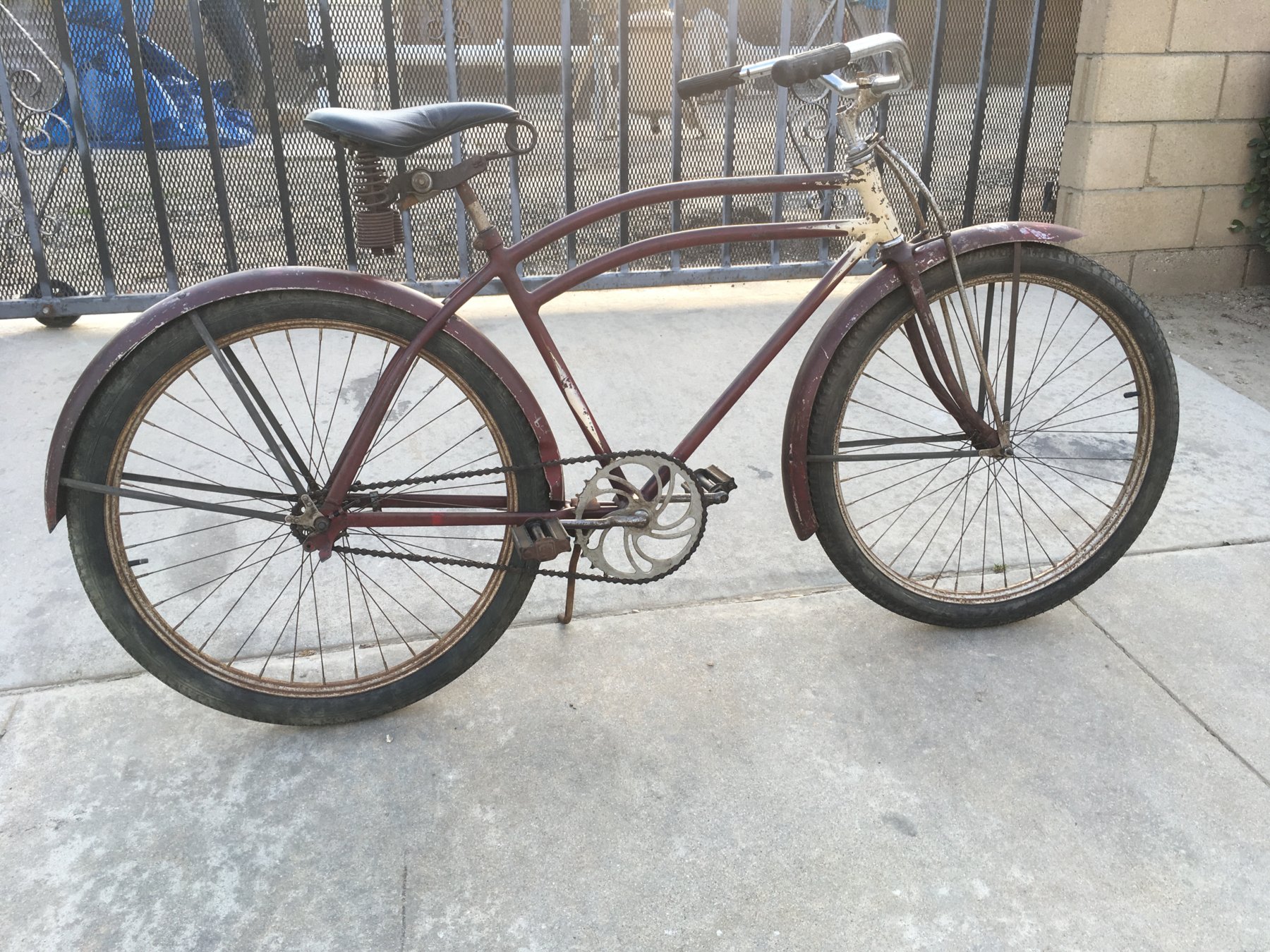

    Rescued this from a parts Butcher, been getting it back together haven't been able to figure out when Western Flyer started using their own sprocket (one of the missing parts) seems like it might take a 36 CWC sprocket (big & small Paisley) not much literature for Western Flyer, I had a extra WF sprocket so used it for now, what is the earliest anybody seen the Western Flyer sprocket. It has the OG triple step ups with a Musselman Western Flyer break arm IMG_5464.JPG IMG_5463.JPG IMG_5462.JPG IMG_5465.JPG

    bikesnbuses, mike j, Scribble and 4 others like this.
  2. #2 Posted May 16, 2017

    Riding a '38 Autocycle Deluxe

    Joined:
    Dec 28, 2012
    Messages:
    5,804
    Likes Received:
    3,197
    Location:
    Ol' st. Lou
    Beautiful bike!! Never seen a brake arm stamped like that, pretty cool.. Looks like a good example of preserving the the crust. @fordmike65

  3. #3 Posted May 16, 2017
    mrg
    mrg

    I live for the CABE

    Joined:
    Aug 9, 2010
    Messages:
    1,736
    Likes Received:
    3,407
    Location:
    socal
    Thanks, posted it yesterday in crust, still hopping someone has/seen a early 36 with a WF sprocket rather than a cwc, or a add to show when they start using them, I know 37 used the WF sprocket.

  4. #4 Posted May 16, 2017

    Look Ma, No Hands!

    Joined:
    Dec 16, 2016
    Messages:
    91
    Likes Received:
    79
    Location:
    Boise i.d.
    That will clean up beautifully

  5. #5 Posted May 17, 2017
    mrg
    mrg

    I live for the CABE

    Joined:
    Aug 9, 2010
    Messages:
    1,736
    Likes Received:
    3,407
    Location:
    socal

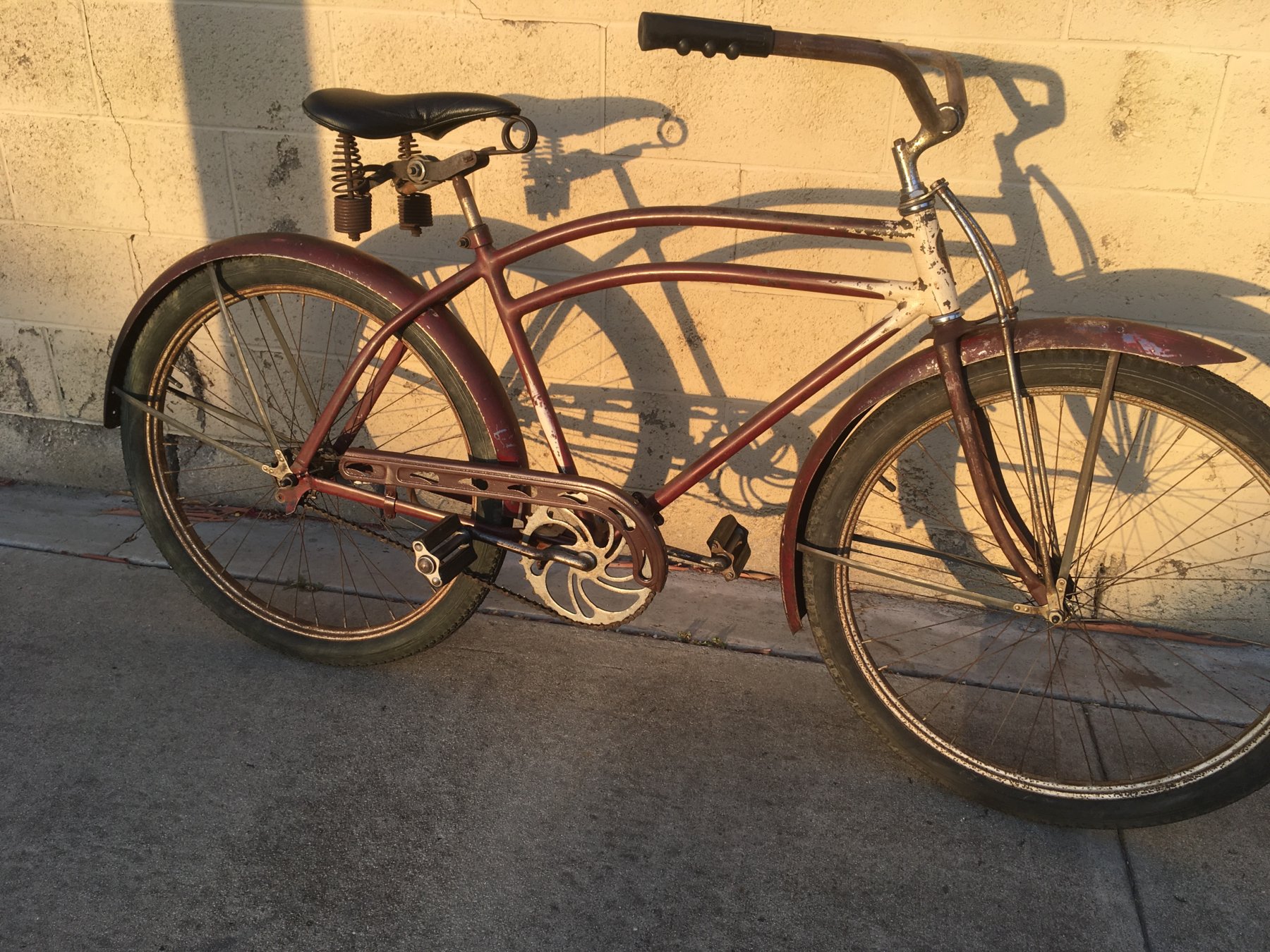

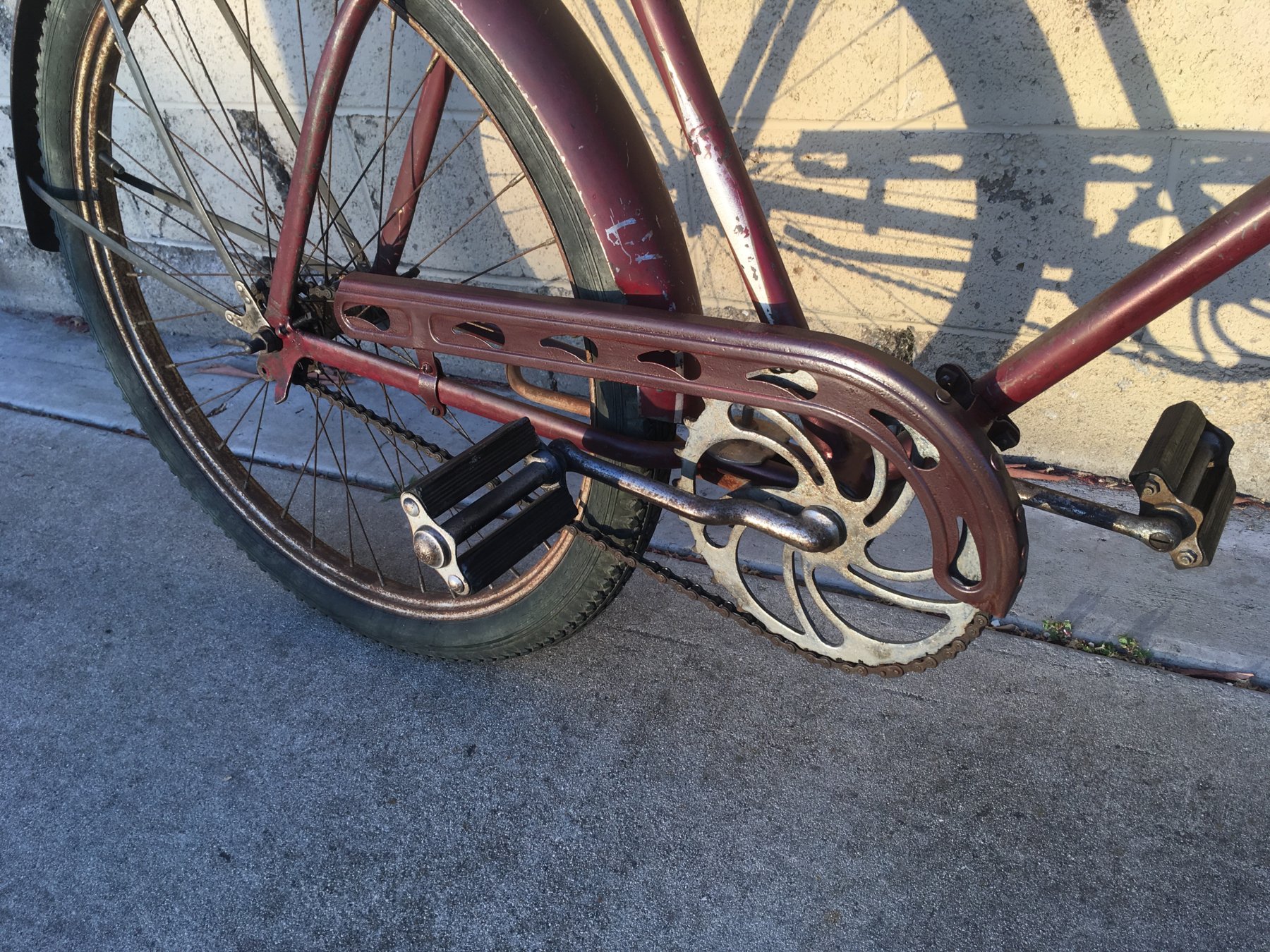

    Well it's been a few years since he's been on the cabe but I still learn stuff from Phil (RMS37) all the time, was doing some research on this bike, still don't know which sprocket for early 36 (A) CWC or WF, and was having trouble finding a chain guard that would fit when I stumbled across an old post by Phil in 2010 telling somebody that their bike was not an early 36 because it didn't have the offset crank, mine is the early 36 with offset crank that means the chain guard needs a longer bracket, so had to fabricate one, never notice the bottom bracket was offset like that !thanks Phil, wonder if he knows he's still helping cabers out? IMG_5528.JPG IMG_5530.JPG IMG_5531.JPG

    #5 mrg, May 17, 2017
    Last edited: May 18, 2017
  6. #6 Posted May 18, 2017

    I live for the CABE

    Joined:
    May 19, 2016
    Messages:
    1,034
    Likes Received:
    2,379
    Location:
    Skerry, NY

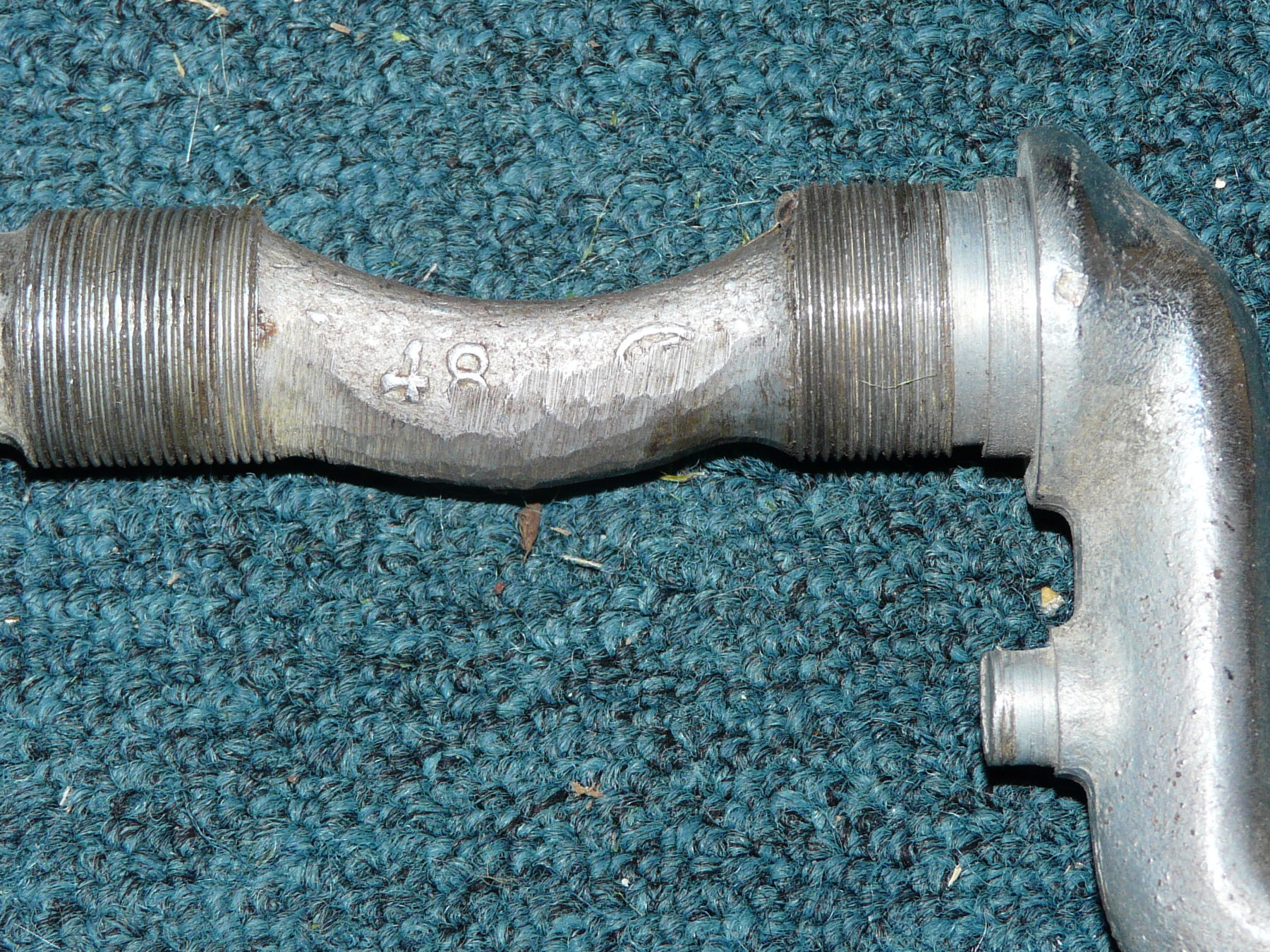

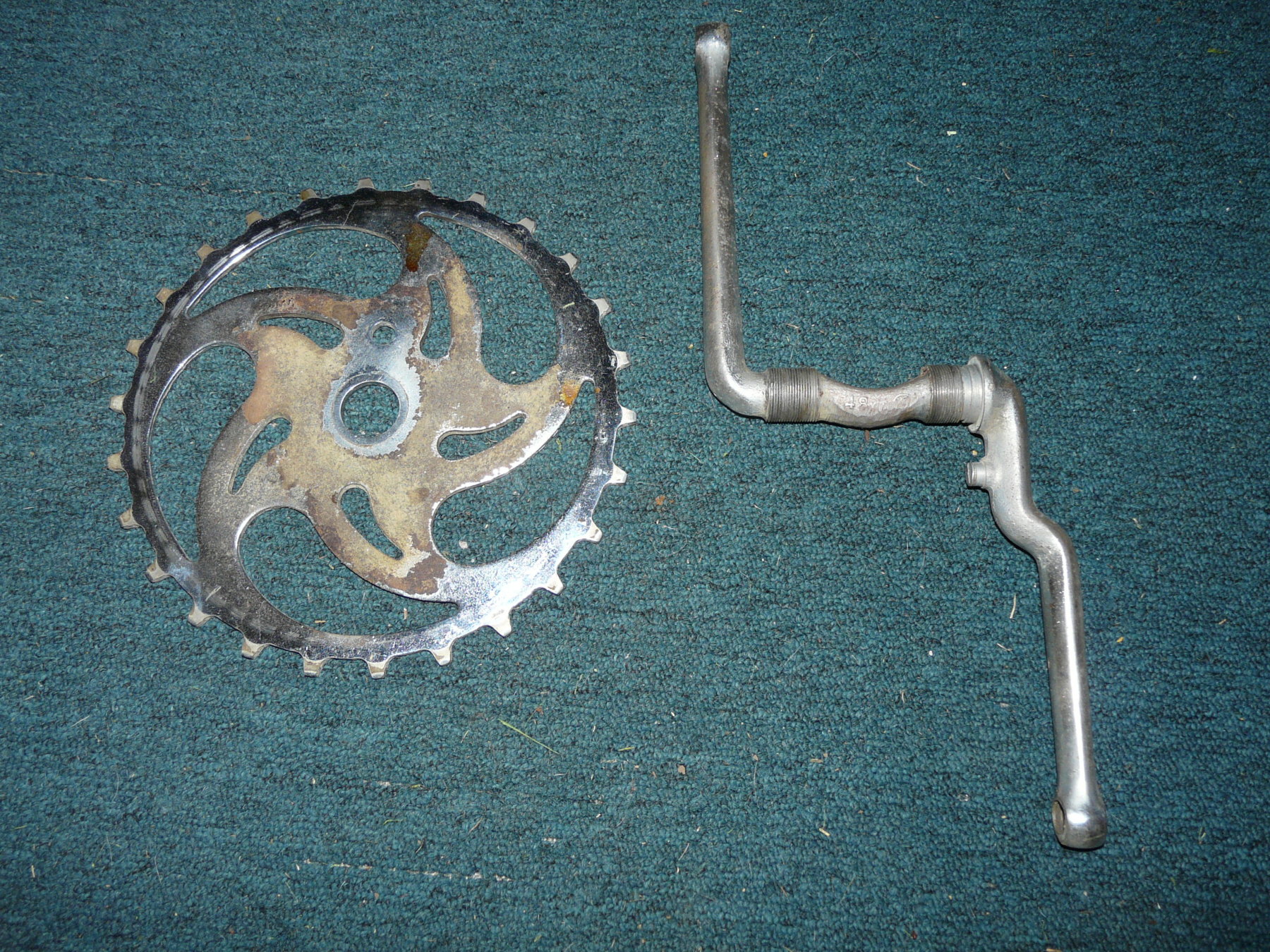

    From my 36 CWC A code...Speed badged.. Number 1172, early production

    a.jpg b.jpg

    Krakatoa and Scribble like this.
  7. #7 Posted May 19, 2017
    mrg
    mrg

    I live for the CABE

    Joined:
    Aug 9, 2010
    Messages:
    1,736
    Likes Received:
    3,407
    Location:
    socal
    That's the problem all early 36 badged roadmasters and other small production badges like speed had that sprocket but don't know about Western Flyer yet, I know 37 on they all WF have The Western Flyer sprocket


    Scribble likes this.
  8. #8 Posted May 19, 2017

    Wore out three sets of tires already!

    Joined:
    Oct 12, 2016
    Messages:
    685
    Likes Received:
    948
    Location:
    New Ipswich NH
    Neat bike, cool brake arm, love Musselmans. Did not know about the offset sprocket very cool will look for that!

  9. #9 Posted May 21, 2017

    I live for the CABE

    Joined:
    Mar 2, 2014
    Messages:
    1,799
    Likes Received:
    1,730
    Location:
    Sunny Southern California

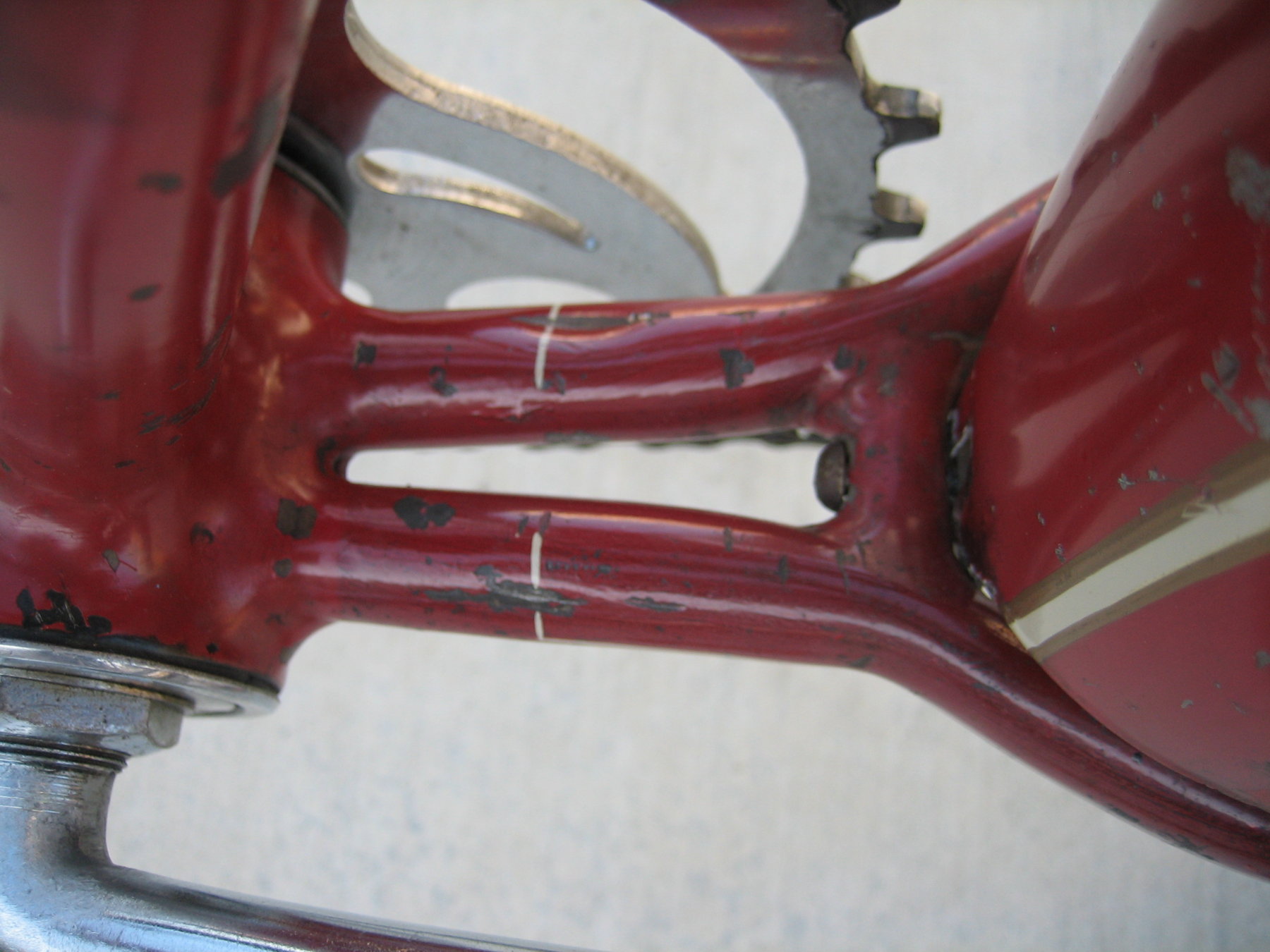

    A better example and comparison of the early 1936 and post 1936 bottom bracket area.
    IMG_0038.JPG IMG_0045.JPG

    Dave Marko, mrg and Krakatoa like this.
  10. #10 Posted May 24, 2017 at 8:40 AM

    Wore out three sets of tires already!

    Joined:
    Mar 23, 2015
    Messages:
    890
    Likes Received:
    373
    Location:
    Buffalo,NY
    I was thinking my WF 39/40 was incorrect with a Roadmaster ring, then I seen this old advertisement .. now I guess I could've had either one .
    Eric



    mrg likes this.
  11. #11 Posted May 24, 2017 at 10:54 AM
    mrg
    mrg

    I live for the CABE

    Joined:
    Aug 9, 2010
    Messages:
    1,736
    Likes Received:
    3,407
    Location:
    socal
    Wow, that's cool, I have seen literature for my Tall Tank where the WF version sometimes have their own specific chain ring, guard & rack or sometime have a mix Roadmaster stuff so who knows (RMS37-Phil), but still looking for 1936 Western Flyer literature to see when they started with their own ring but like the look of it with the WF ring on it now so till someone shows me pic to prove what right, it will stay on IMG_5554.JPG IMG_5562.JPG
