New to me 1941 Schwinn

[Schwinndig]

The frame looks like it was maroon to me. The fenders and guard were green, so it seems at least to my eyes that they were added to the bike. Pretty cool project.



[bobcycles]

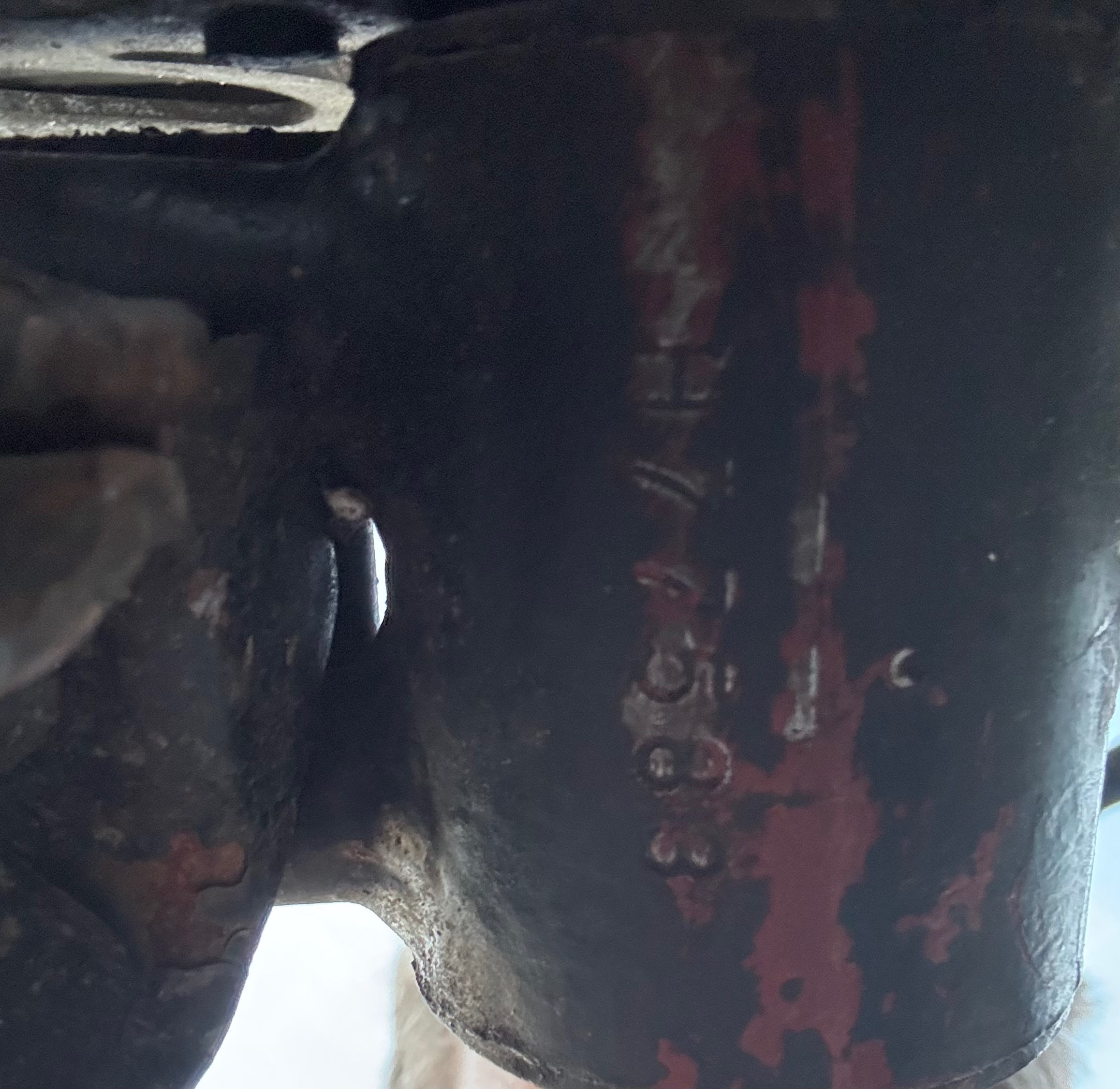

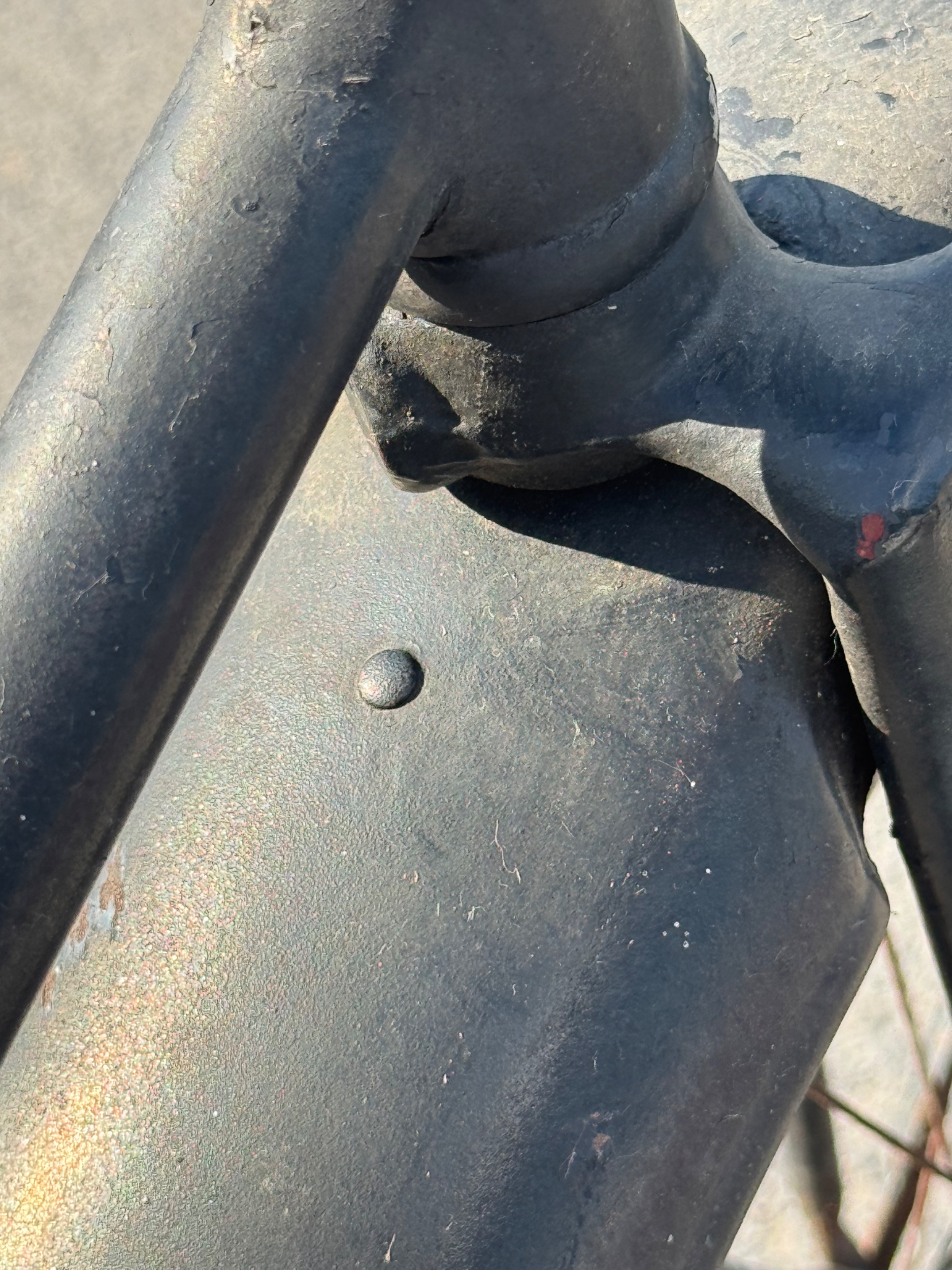

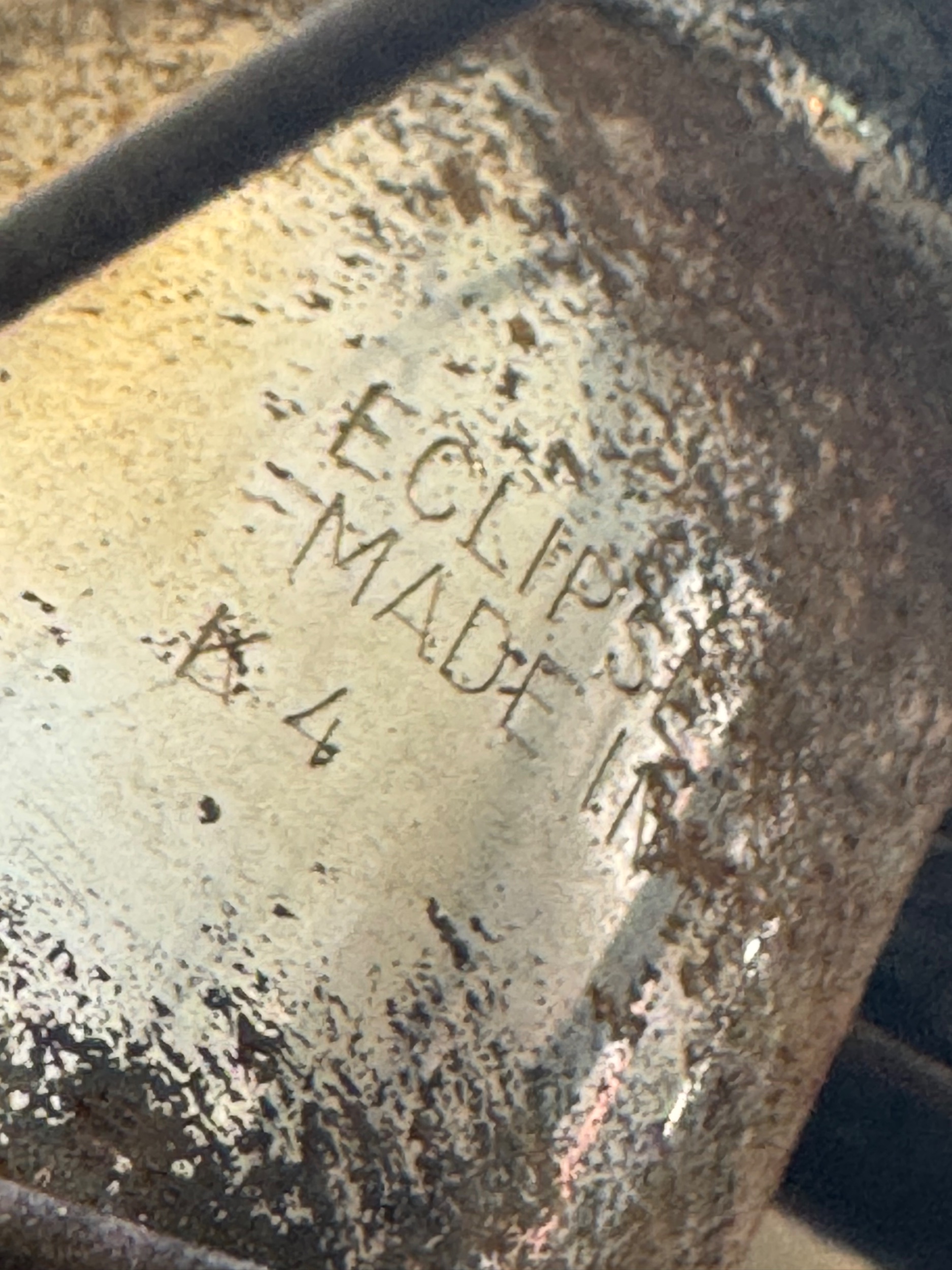

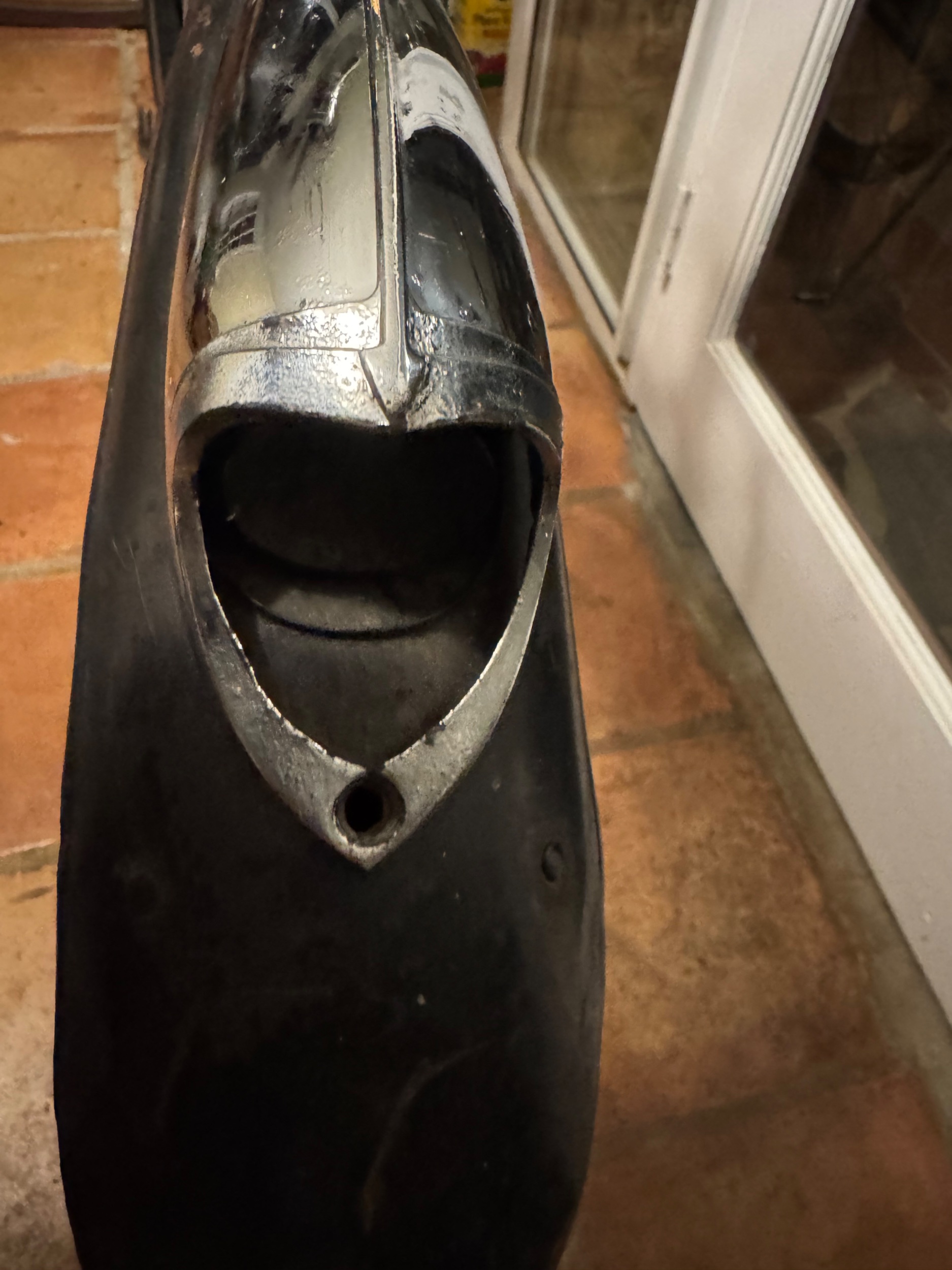

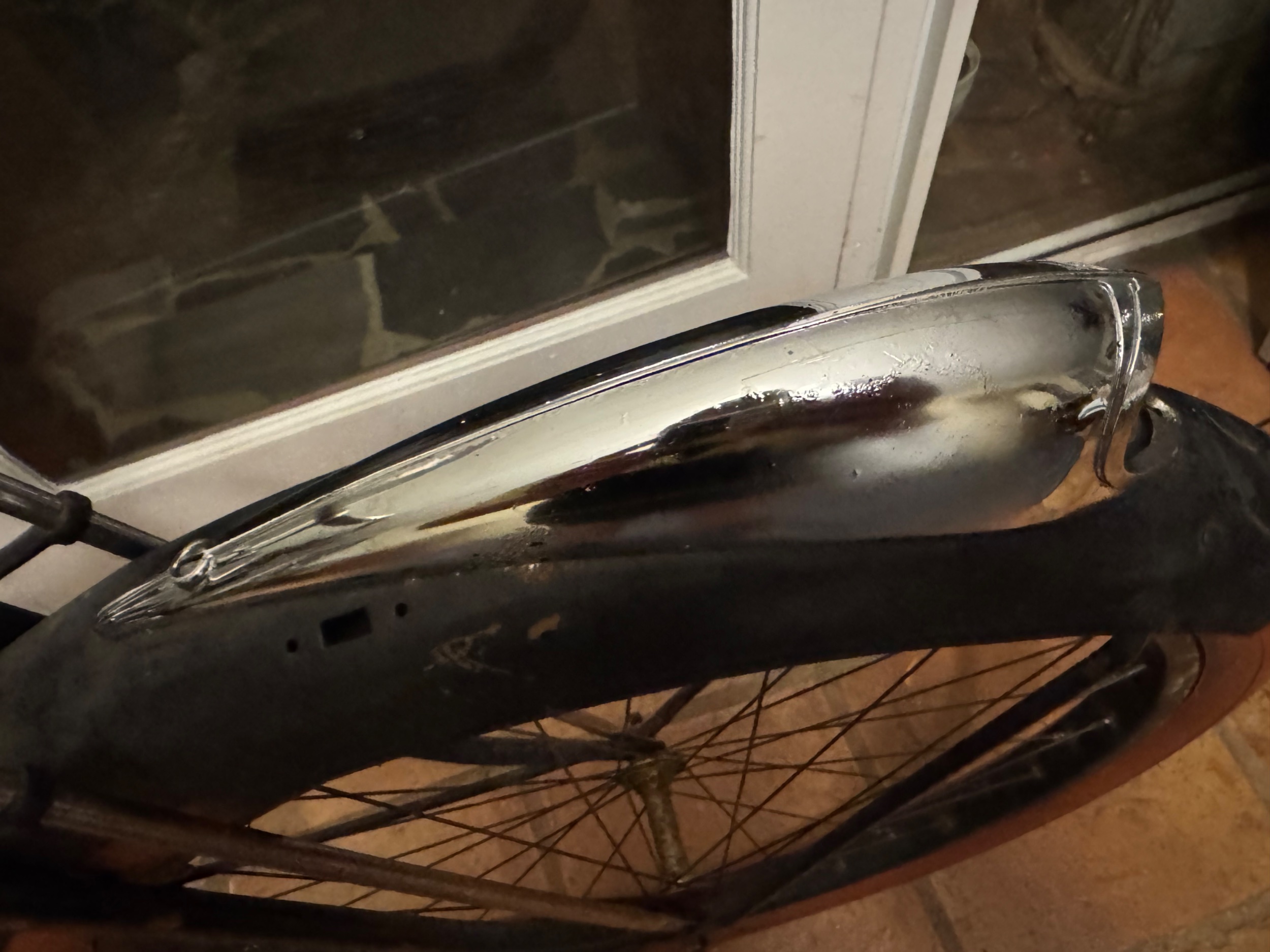

Picked this up yesterday. B model with locking truss fork and an H serial, so it almost has to be late 1941 production. (K4 Hub jives with that) Missing the original bars, grips, pedals, seat and rear reflector. There’s one weird rivet on the front fender behind the fork. I think the headlight may be a bit squished on the left side too.

View attachment 2412132

View attachment 2412133

View attachment 2412134

View attachment 2412135

View attachment 2412136

View attachment 2412137

View attachment 2412138

View attachment 2412139

View attachment 2412140

View attachment 2412141

View attachment 2412142

View attachment 2412143

View attachment 2412144

View attachment 2412203

Interesting! Rivet was where the Spring fork would mount... the spring and truss fenders are the same
other than keyhole slot for truss, and small hole for springer... Schwinn ran out of truss fenders...
used a springer one... Resourceful!!!



[bobcycles]

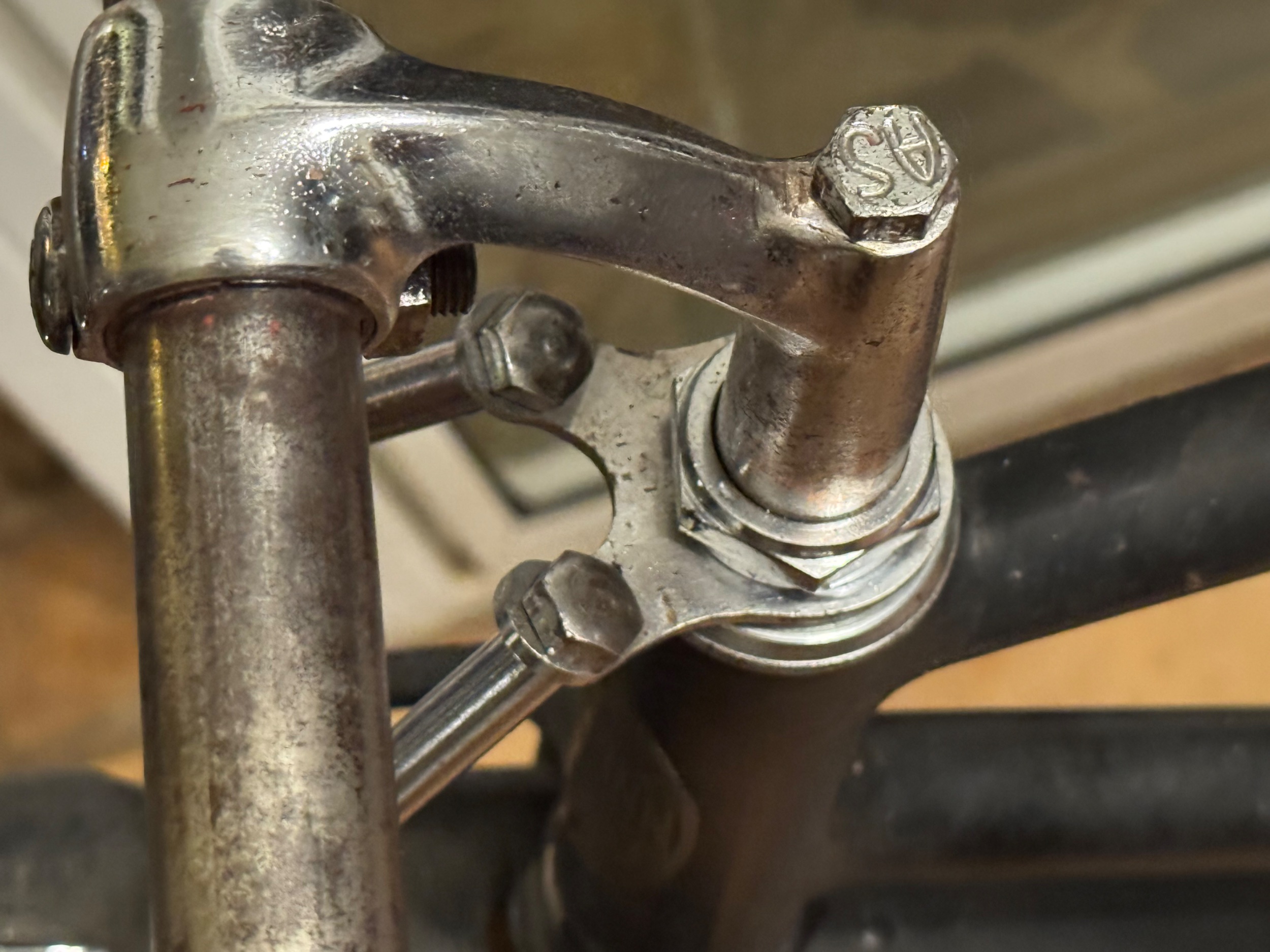

If the key in NOT in the lock...then the pivot piston is most likely broken, or the Pivot piece inside the fork is.
I can repair these situations if you run into a roadblock



[elginkid]

The frame looks like it was maroon to me. The fenders and guard were green, so it seems at least to my eyes that they were added to the bike. Pretty cool project.

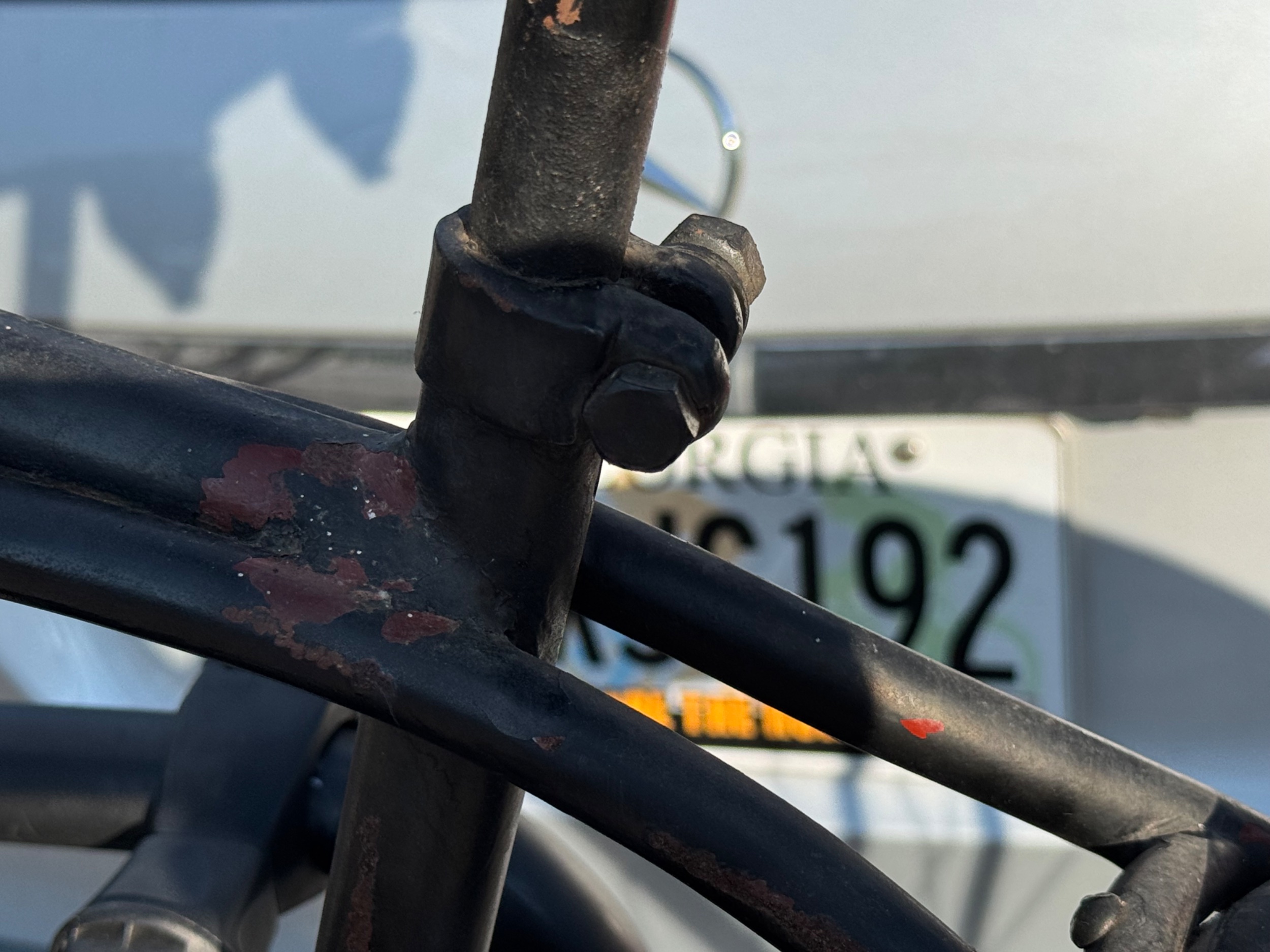

The red that you see isn’t original paint. That paint covered EVERYTHING, frame, fenders, handlebars (even where it passes through the stem), truss rods, crank, etc. And the black paint was a layer on top of it. I think someone may have stripped off the visible paint (ie not under the fenders, under the decal or on the back of the chainguard) and then painted the whole thing red. Then someone later sprayed the whole thing black. The inside of the bottom bracket and the steer tube were also coach green.



[elginkid]

I stripped the paint off of the brightwork, cleaned up most of the bolts and put it back together on correct size tires that weren’t see through. It came with the most threadbare set of Schwinn Spitfire 26x1.75 tires.

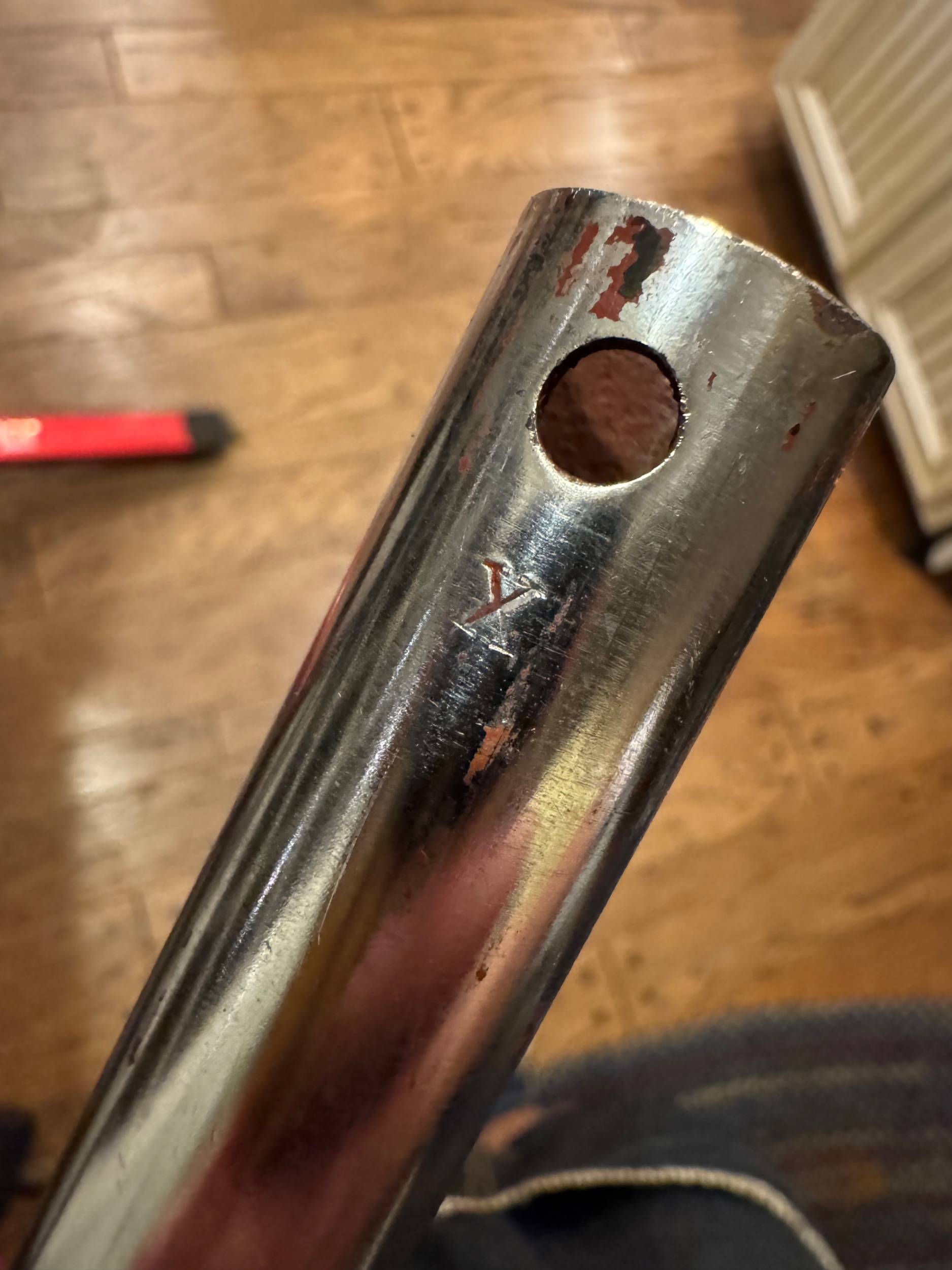

The handlebars aren’t braced as I would expect, and they have an “X” marked on them where a set of Torrington’s would be stamped with a “T,” so I’m assuming they’re replacements?
