Corbin & New Departure Hub Dating Project - Need everyone's help pre-1933

#eBayPartner    Most Recent BUY IT NOW Items Listed on eBay
eBay Auction Picture
eBay Auction Picture
eBay Auction Picture
eBay Auction Picture
eBay Auction Picture
eBay Auction Picture
eBay Auction Picture
eBay Auction Picture
eBay Auction Picture
eBay Auction Picture
eBay Auction Picture
eBay Auction Picture
eBay Auction Picture
eBay Auction Picture
eBay Auction Picture
eBay Auction Picture
eBay Auction Picture
eBay Auction Picture
1927 New Departure Coaster Brakes ad ~ Curious it still shows a Model A on the bike

1927 New Departure Coaster Brakes ad ~ KIDS PLAYING BASEBALL

I find this ad very interesting to our New Departure timeline. When you blow this 1927 ad up it is clearly a Model A on the bike. Now we know the Model A was in the catalog through 1928 yet the Model C was available as early as 1920 but the general thought is most bicycles that got New Departure hubs in 1927 got Model C's beginning in 1927. Why would New Departure do an ad in 1927 with a 24 year old run hub when a new one was available in the form of the Model C????????? Did ND not start advertising the "Improved" Model C until 1928 as I posted in an earlier 1928 ad with the "Improved" Model C? Very curious indeed!!!!!!



MY HUMBLE EDITORIAL ON THIS 1927 ND AD FEATURING BASEBALL FROM A HISTORICAL PERSPECTIVE: We so often forget about historical context and the times when these bicycles were built. 1927 is of particular interest to me as I am currently restoring a 1927 Stutz motor-bike built by Pope/Westfield and I like to often marvel at what was going on in the world when these great bikes were built. I am also a huge fan of baseball of our past, before performance enhancing drugs ruined my favorite "stats" driven sport, for me at least. From a baseball perspective as the picture reminded me, we marvel at these old bikes, their history, and the context of the times. This was an ad from a time, 1927, which was the year the Sultan of Swat, maybe the greatest baseball player ever, Babe Ruth hit 60 home runs in the middle of his playing career. A feat accomplished only once since with Maris' 61 in 1961, without the use of performance enhancing drugs and one of the greatest feats of sports history. If I could magically be transported back in time for just one day, I can't imagine a greater day than riding a 1927 Stutz motor-bike to Yankee Stadium in New York on Sept 30, 1927 to watch the Babe hit his 60th. Can you imagine the electricity in the air that great day? Just WOW, what an era!!!!!


Last edited:
New Departure Model D Rear Hub CUTAWAY DEMO pics

New Departure Model D Rear Hub CUTAWAY DEMO pics
















New Departure Model WD Rear Hub CUTAWAY DEMO pics

New Departure Model WD Rear Hub CUTAWAY DEMO (I know not pre-1933 but thought I'd add them anyway as a great resource)








New Departure Model DD Rear Hub CUTAWAY DEMO pics

New Departure Model DD Rear Hub CUTAWAY DEMO (I know not pre-1933 but thought I'd add them anyway as a great resource)














New Departure Model A, Model C, & Model D Parts Diagrams

New Departure Model A Parts Diagram



New Departure Model C Parts Diagram



New Departure Model D Parts Diagram



New Departure Controller Pat'd hub - where does this fit in? Definitely very early

Found this at:

http://bikeville.blogspot.com/2012_05_01_archive.html

New Departure Controller Pat'd hub!!!! Now know this is the first decelerator/coaster brake hub from 1898!!!!!!!! ...

From Bikeville Blogspot thoughts, May 2012:

"New Departure Controller Pat'd coaster brake hub. This is an early one, notice the brake arm on the driveside(no cog affixed in the photo). It is also takes straight-pull(or sometimes referred to as button head) spokes. New Departure began in 1888 producing doorbells and by 1898, they produced their first bicycle coaster brake hub. They later were purchased by General Motors in 1916. New Departure hubs, the later model D hubs particularity, were known for their great modulation in braking and were found on popular Schwinn Phantoms bicycles. (from researching, this appears to be the only photographs of the New Departure Controller hub online. I hope to keep putting more weird and esoteric bicycle parts online)"

NOTE: Interesting to note the Coaster Brake is on the right side.








Last edited:
New Departure WL Front Hub

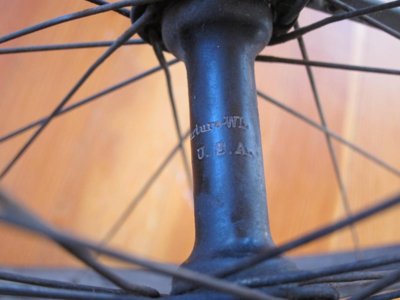

I have a New Departure WL front hub on my 1930-1932 Mead Crusader. This is a blackout hub; weren't blackout hubs only produced during WWII? If this is true, then this represents a repair job. This same bike has a New Departure Model C rear hub. I included a couple photos of the WL front hub.


Attachments

  • IMG_6272.jpg
    75.7 KB · Views: 370
  • IMG_6271.jpg
    62.7 KB · Views: 366
I have a New Departure WL front hub on my 1930-1932 Mead Crusader. This is a blackout hub; weren't blackout hubs only produced during WWII? If this is true, then this represents a repair job. This same bike has a New Departure Model C rear hub. I included a couple photos of the WL front hub.

msreust, Pretty sure blackout WL hubs were WWII only & would be a repair job. Hopefully others will weight in who are more versed on post-1933 bikes than me. Yours probably originally had a SM on it, but that WL is a very nice hub, thanks for sharing pics. - Gary

Corbin Duplex Model 8 - April, 1919 The American Boy

From an ad in the April, 1919 The American Boy
Eighteen years of brake study backs the 1919 Corbin Duplex Coaster Brake—so does a ten-million-dollar corporation. Those are the two principal reasons why the Corbin absolutely can’t go wrong—why it’s got to be safe, comfortable, long-lasting, positive.
