z
cds2323
Cruisin' on my Bluebird
I missed the 24 hour cutoff to add this to the previous post.

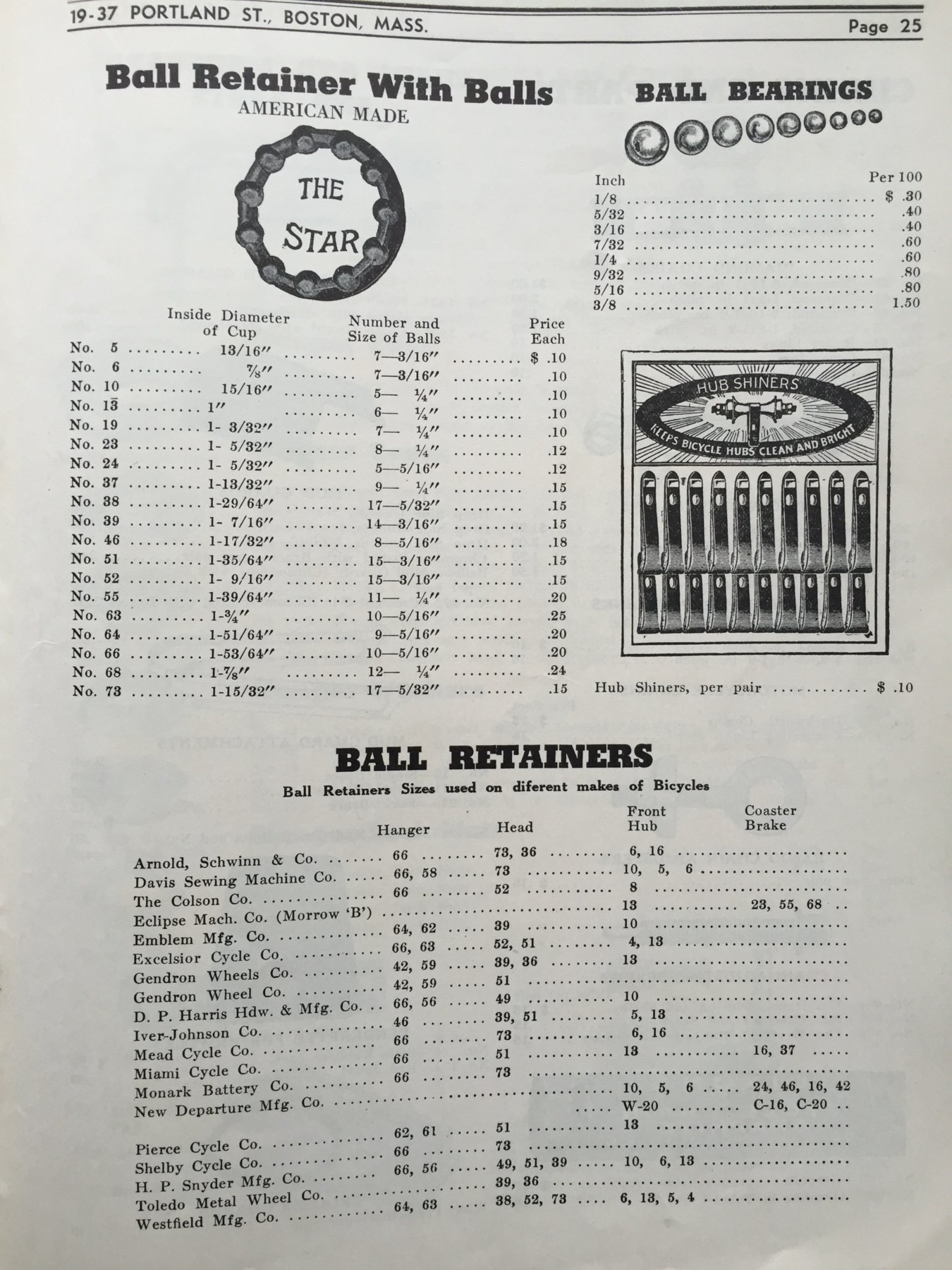

Another ball bearing chart from 1938 Hub Cycle catalog. This one shows the number and size of balls in the retainer.
This is a chart from the 38 Island Supply catalog. It's confusing as no retainer numbers are used, only Islands' part numbers. With a little sleuthing you can match to the other charts if you need to.

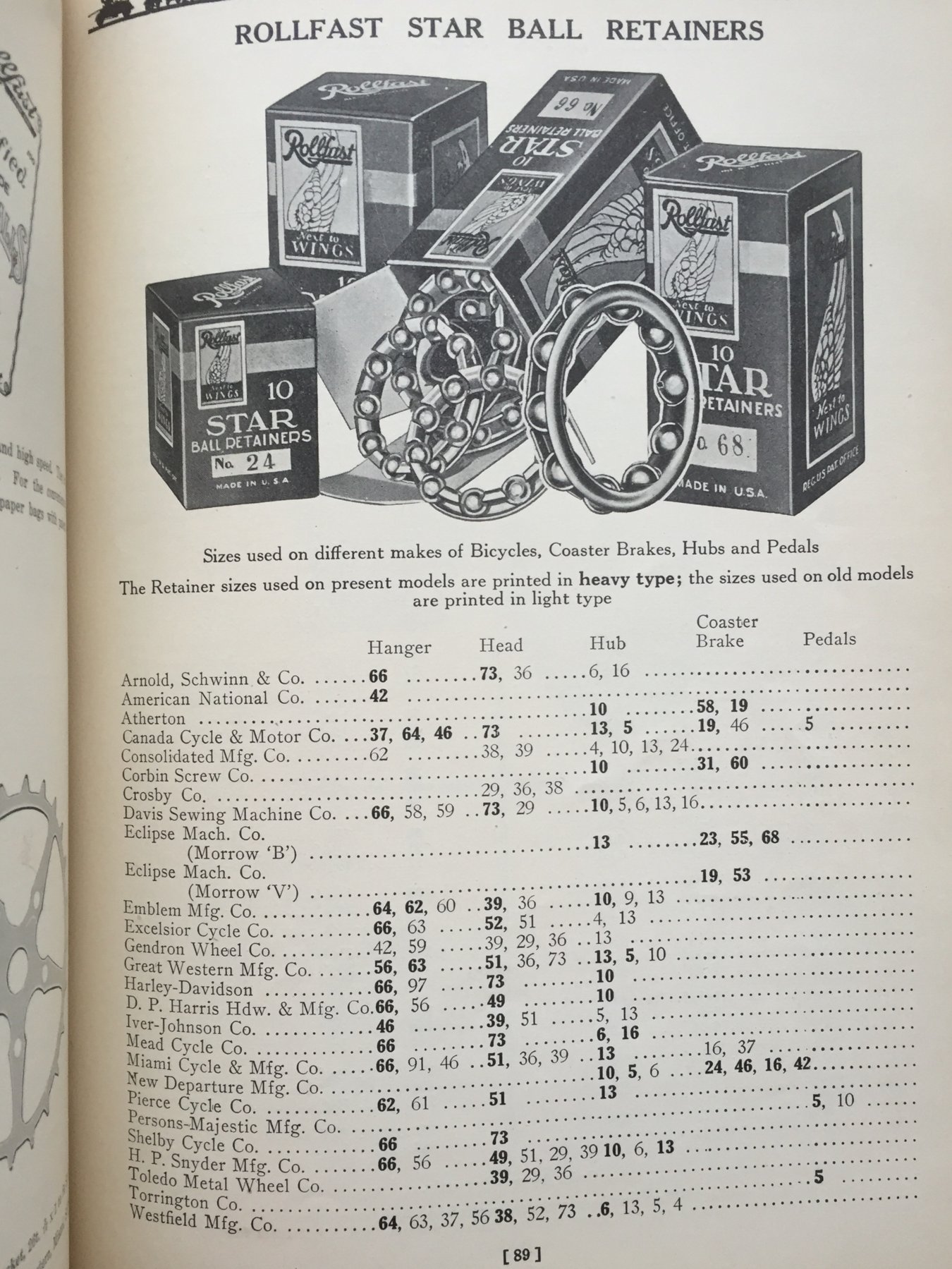

Edit: Also a couple of pages from a 1932 Rollfast catalog.
Another ball bearing chart from 1938 Hub Cycle catalog. This one shows the number and size of balls in the retainer.
This is a chart from the 38 Island Supply catalog. It's confusing as no retainer numbers are used, only Islands' part numbers. With a little sleuthing you can match to the other charts if you need to.
Edit: Also a couple of pages from a 1932 Rollfast catalog.
Last edited:
Evinrude Streamflow advertisement, courtesy @brwstrmgmt
http://thecabe.com/forum/threads/evinrude-streamflow-information.87963/
http://thecabe.com/forum/threads/evinrude-streamflow-information.87963/
Mark Mattei
Finally riding a big boys bike
fordmike65
Riding a '37 Colson Imperial
https://archive.org/details/bicycleaccess00riceuoft
Courtesy of Cabe member Trainman999
http://thecabe.com/forum/threads/ar...rts-suppiler-catalogs-like-this-online.93642/
Courtesy of Cabe member Trainman999
http://thecabe.com/forum/threads/ar...rts-suppiler-catalogs-like-this-online.93642/
fordmike65
Riding a '37 Colson Imperial
