1980 Schwinn DELUXE Cruiser

[WillWork4Parts]

The late 80's seats with the white rectangle inspection sticker had ribs added into the pan too if you really want to get into details. I have yet to see any documents on when either of these changes happened though.

They also had two bend over tabs to secure the pans together at the rear of the seat.



[koolbikes]

1980 Schwinn Deluxe Cruiser Seat ... these have no ribs on pan and have a single tab on rear of pan. The later seats had rib reinforcements to pan and dual tabs on rear of pan.

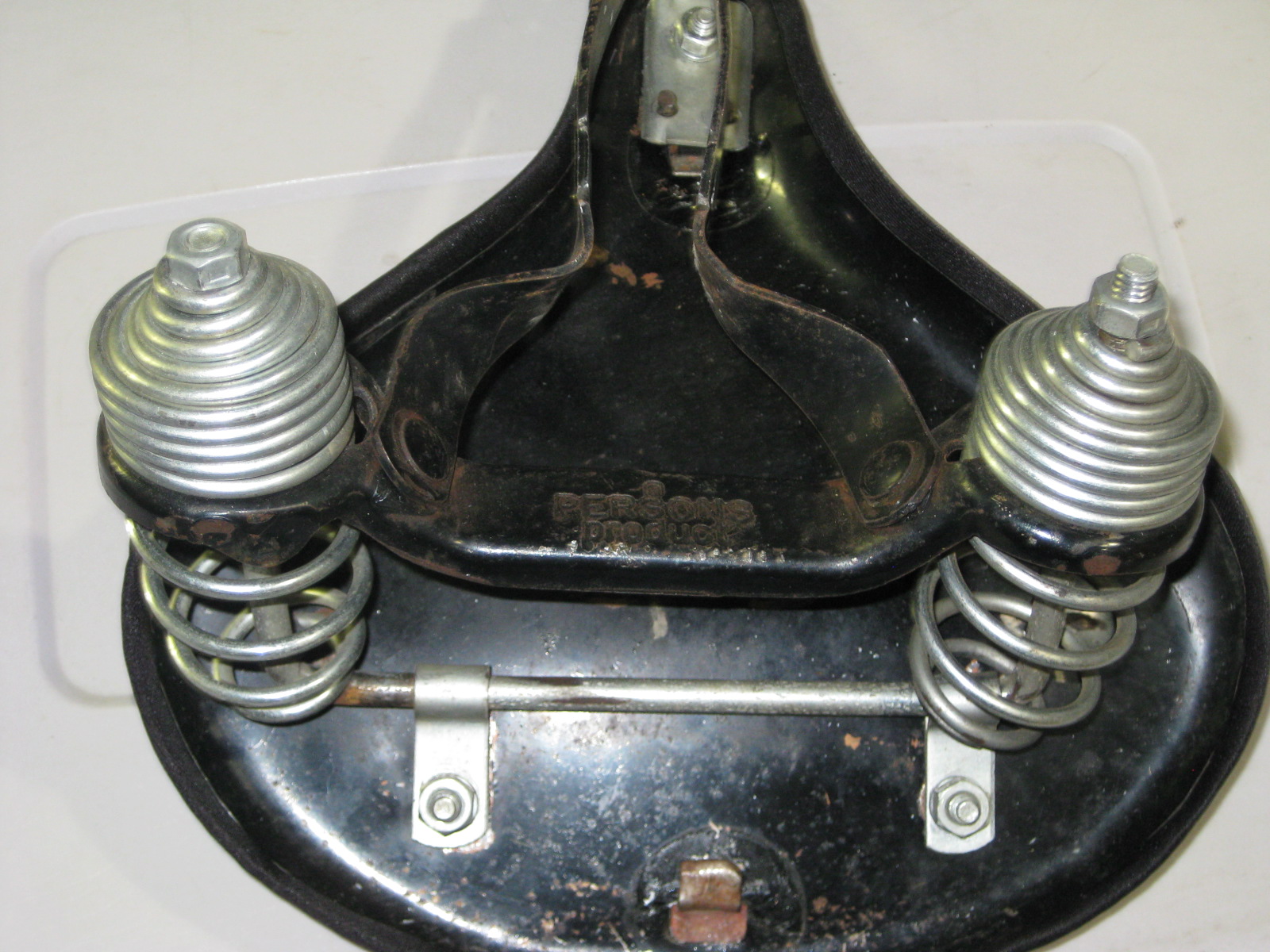

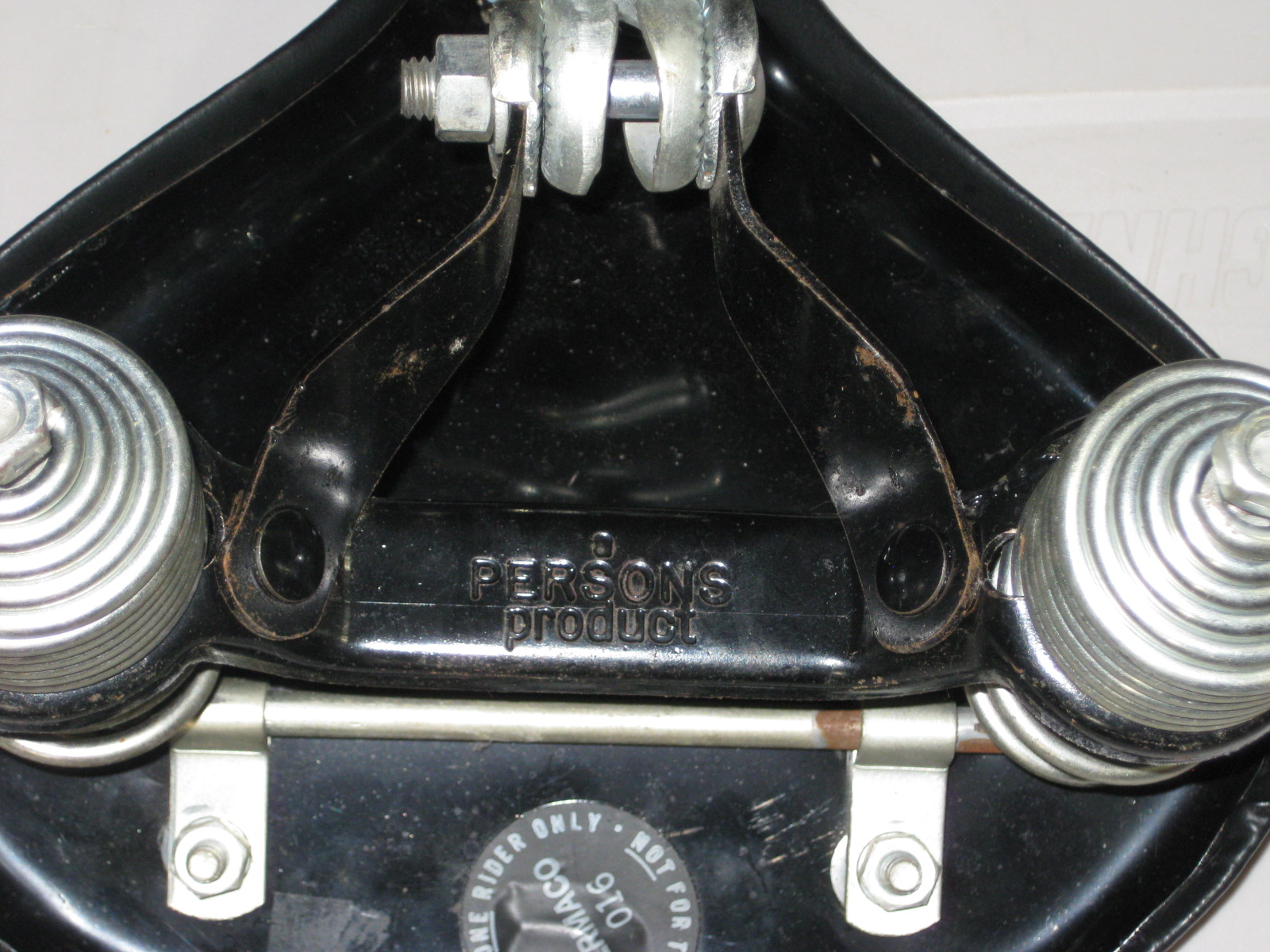

Early seat ... no reinforcement ribs on frame

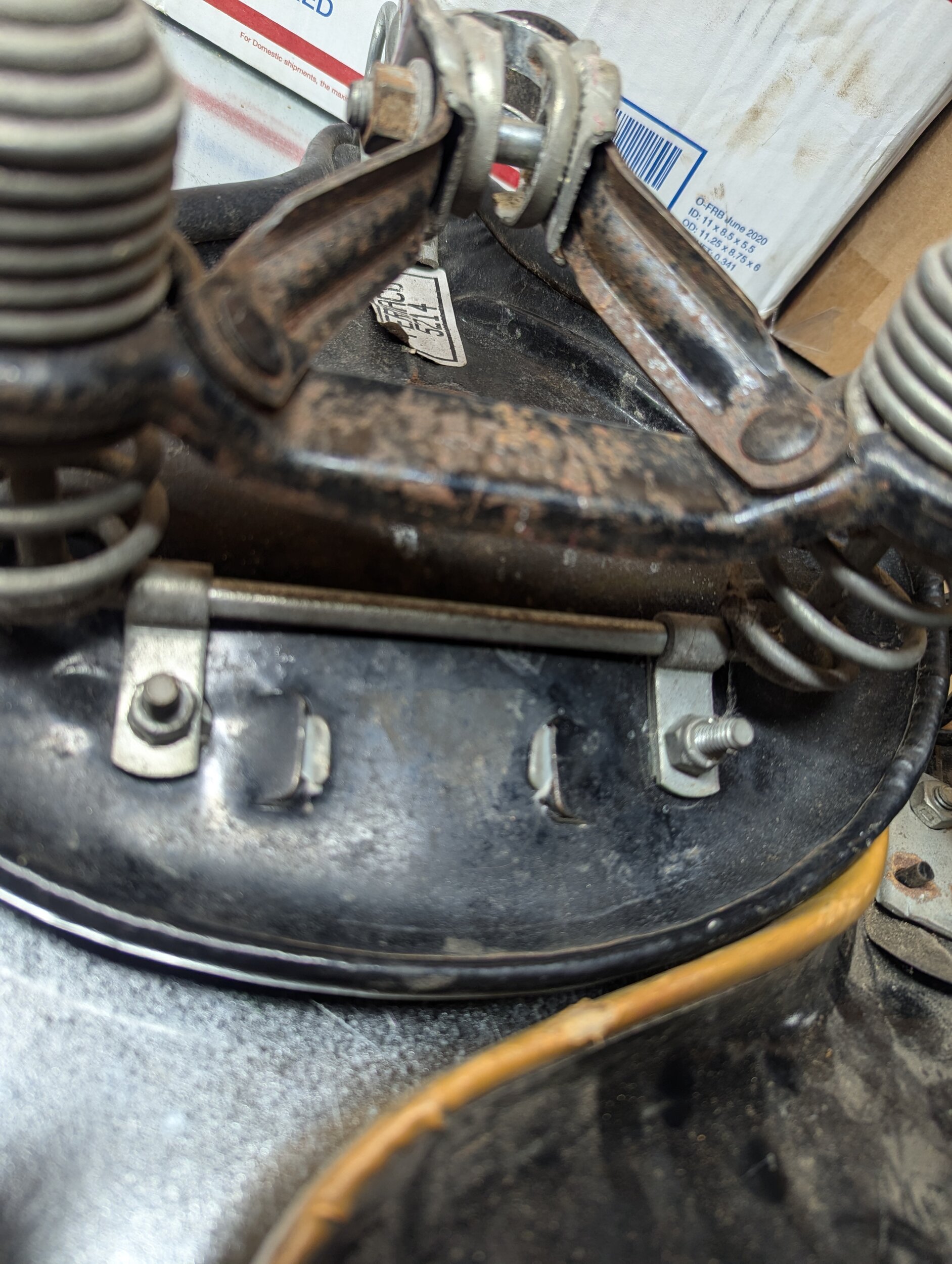

Bent frame due to no reinforcement ribs

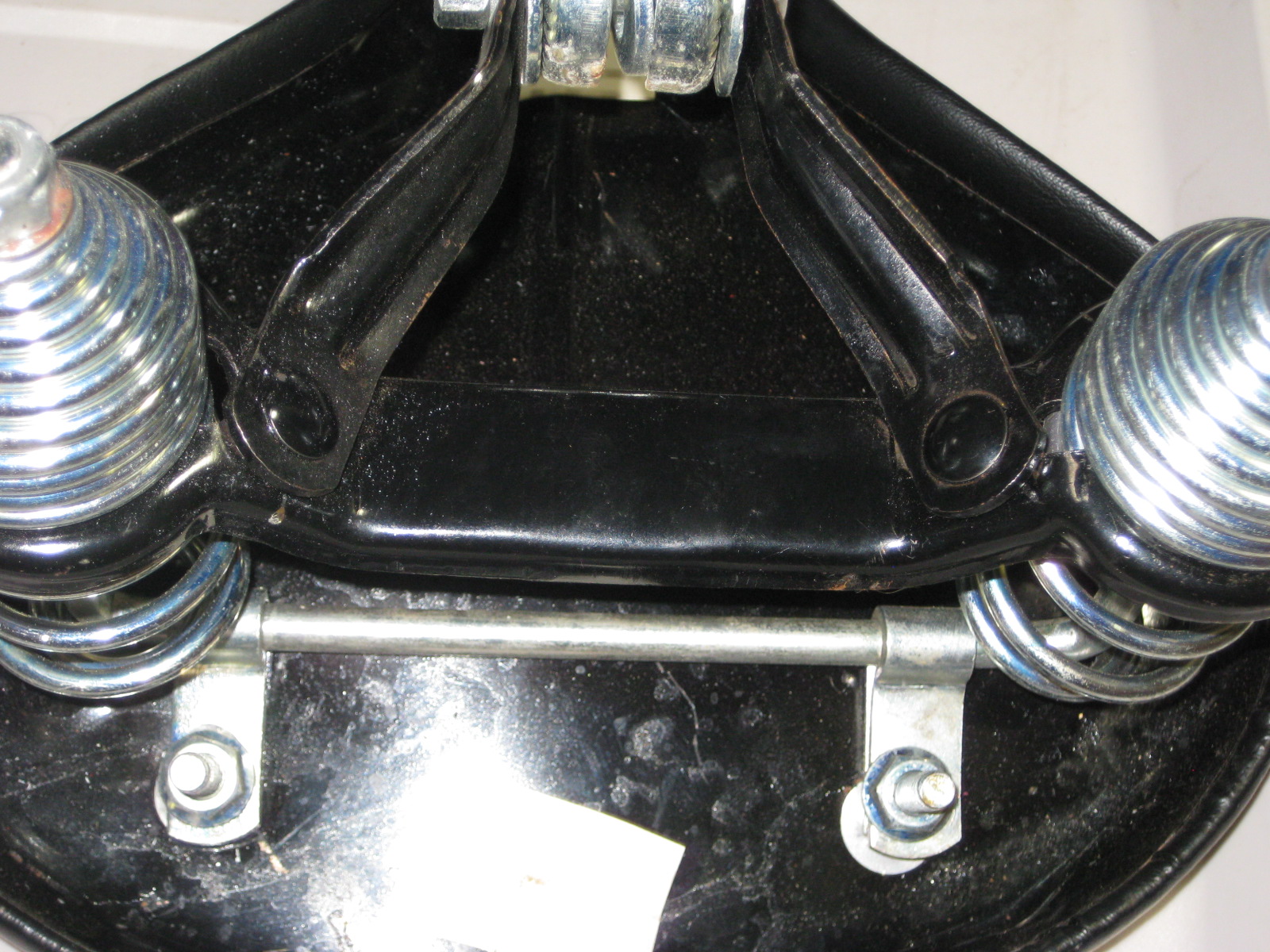

Replacement seat with reinforcement ribs



[Schwinn Sales West]

1980 Schwinn Deluxe Cruiser Seat ... these have no ribs on pan and have a single tab on rear of pan. The later seats had rib reinforcements to pan and dual tabs on rear of pan.

Early seat ... no reinforcement ribs on frame
View attachment 2145332

Bent frame due to no reinforcement ribs
View attachment 2145333

Replacement seat with reinforcement ribs
View attachment 2145334

Thanks for adding the "bent rail seat" photo. The Persons Majestic (PERMACO) seats were "marginal at best". The seat frame rails were thin and soft and easily bent to the side when the bike fell over. The stiffening ribs were a Band-Aid fix by the manufacturer. Schwinn warrantied a lot of those seats back in the day.

John



[koolbikes]

Schwinn went with the Permaco seat to give it that "Classic" look. It was not comfortable at all, the seat cover material was thin and when the bike fell over, it would bend the pan edge inward and damage the material easily. The Mesinger seat was durable and much more comfortable.



[mrg]

.



[mrg]

So I just bought a seat without the strengthening ribs it would only be correct for early '80 bikes?

No ribs is early 80 and older, funny when I see people selling one with ribs here & ebay saying there 40'50's, any ribbed frame Persons is late 80 and newer!



[coasterbrakejunkie1969]

.

Yes the seat I bout was advertised as 1950's hahahah nope



[koolbikes]

Being all the detailed information of a 1980 Schwinn Deluxe Cruiser ... here is the Schwinn specifications sheet ...
7098 Saddle /Tan ... 3072A / Gumwall Tires ... Grips color matched? I've only ever seen the Black cushion grips used.



[koolbikes]

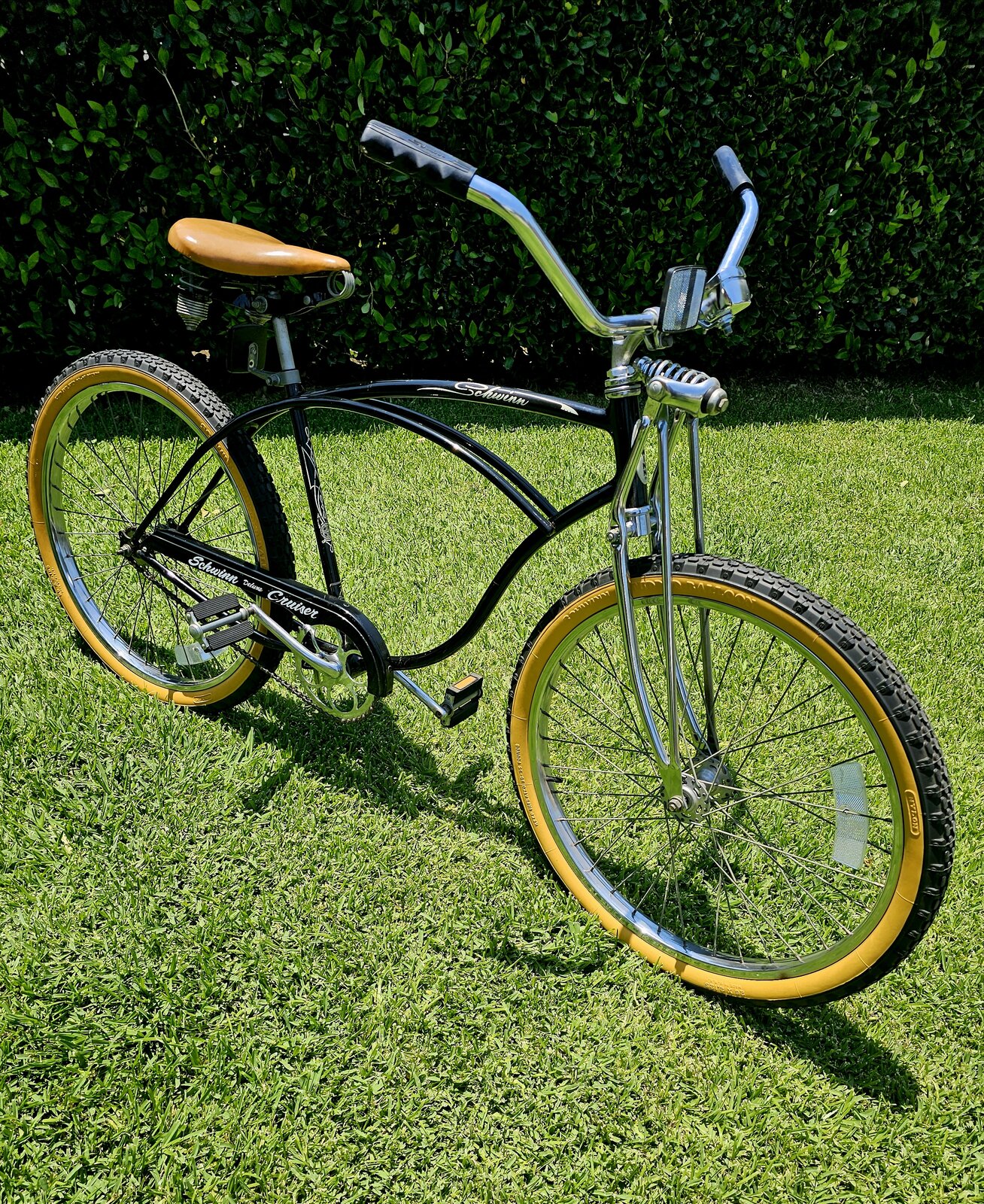

Couple nice examples of original early 1980 Schwinn Deluxe Cruiser's ...



[blakekennedy]

So what’s up with these seats? I see some have a nice concave to them, and some are really flat and puffy looking. Always thought they were different but they have the same frames. I have a girls cruiser with one that has a nice concave.
