Sold Drop stand bolts set

[saladshooter]

I'm talking (all) CWC

Maybe for the early cwc, but every set on eBay is fine thread, like my sample 1/4-28



[fshbydesign.com]

I'm talking (all) CWC

Either way I can do it. Thanks for the insights



[srfndoc]

I'll take a set of the early CWC once they get figured out. None of the ones on Ebay are correct for this application.



[poolboy1]

I'll take a set of the early CWC once the get figured out. would also be interested in Shelby ones if you make them?



[Freqman1]

I'll take a set of the early CWC once the get figured out. would also be interested in Shelby ones if you make them?

I thought Shelby stands have the 'ears' and attach at the axle bolt. The stand itself is held to the ears by rivets.



[slick]

Shelby ears with the curved braces are held with screws. I have 13 of them all on bikes. All screws. If its supposed to be a rivet, that would be one huge rivet for a tiny stand. No need for a hole that big.



[fshbydesign.com]

All done! I'll be shipping out tomorrow



[srfndoc]

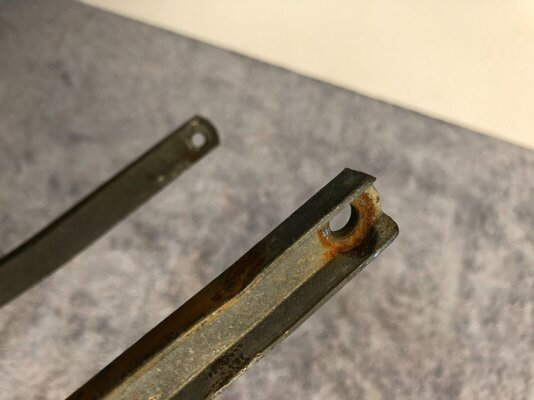

Just measured an undrilled early braced CWC drop stand and I get the following:

Hole - .25"
Space clearanced for dropstand bolt head - .48-.50"





Maybe others can confirm. Also, did the early CWC dropstands even use a shouldered bolt? I asked this question a few months ago hoping to get some photos of an original set but nobody stepped up. I have two separate sets of photos from original braced cwc dropstands that show just normal bolts with square nuts.



[fshbydesign.com]

Just measured an undrilled early braced CWC drop stand and I get the following:

Hole - .25"
Space clearanced for dropstand bolt head - .48-.50"

View attachment 1806888

View attachment 1806889

Maybe others can confirm. Also, did the early CWC dropstands even use a shouldered bolt? I asked this question a few months ago hoping to get some photos of an original set but nobody stepped up. I have two separate sets of photos from original braced cwc dropstands that show just normal bolts with square nuts.

View attachment 1806882

View attachment 1806887

I had purchased these dropstand bolts a while back but their shoulder (.33) was too wide to use on the CWC braced dropstand with a .25 hole.

View attachment 1806885

View attachment 1806886

Straight thread bolt ( no shoulder) would wiggle off. I guess it could have been done that way but they just wouldn't stay on.



[srfndoc]

Straight thread bolt ( no shoulder) would wiggle off. I guess it could have been done that way but they just wouldn't stay on.

Right, doesn't make sense. Just haven't seen somebody post an actual original set.
